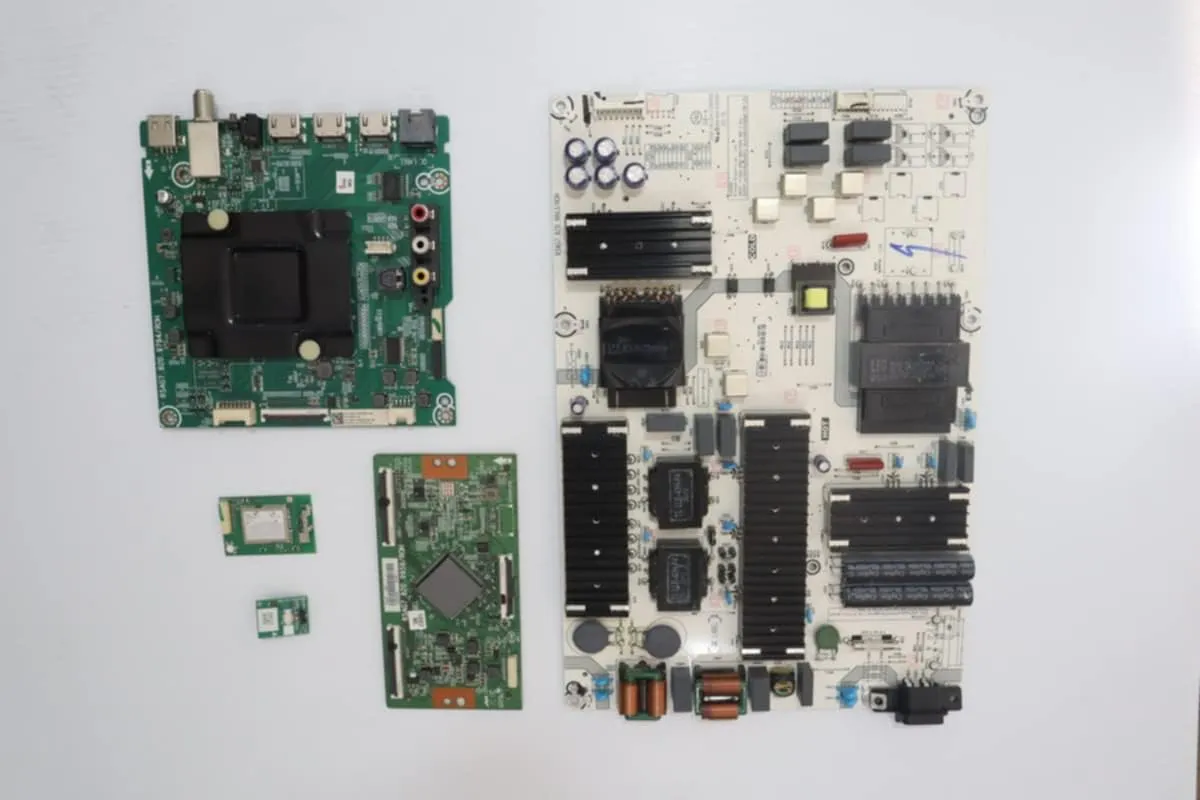

- Television repair kit for Hisense 75R6E3. Our TV Repair Kits usually include all the major components that make up the internal composition of the Television. The objective of these repair kits are to enable anyone with basic knowledge of electronics to be able to repair their television. We include Main Board, Power Supply, T-Con, as well as other non-critical parts such as WiFi boards and button set boards when available.
- It is critical that you match your Television Open Cell (LCD Panel Number) with the Open Cell number listed above. The same model TV may be different internally depending on the date and factory that it was produced, so you cannot solely depend on the make and model of the television being the same. In some cases, the same main board may be programmed to control a different LCD Panel Number (Open Cell) and again, it's critical you match Make Model Open Cell/LCD Panel Number of the TV.
- Keep in mind that some Televisions do not have TCon boards or Power Supplies as they are integrated into the Main Board. Our kit's also may include some of the major flex cables and wires of the television. If the TV is Bluetooth or WiFi enabled and the wireless module is separate, we may include the wireless module as well. This is essentially all of your Television's components in a box!
- Our replacement kits are pulled from working Televisions and the kits are tested to be 100% functional. Our parts are marked with tamper proof stickers and stamps to ensure quality. Our specialists can assist to locate the correct parts for your device should you need any assistance.
- IT IS CRITICAL TO MATCH YOUR PANEL NUMBER BEFORE ORDERING! Failure to select the matching panel number could result in a software mismatch! If your panel is not listed, this kit will most likely not work with your television. This TV repair kit comes with 30 Day Warranty.

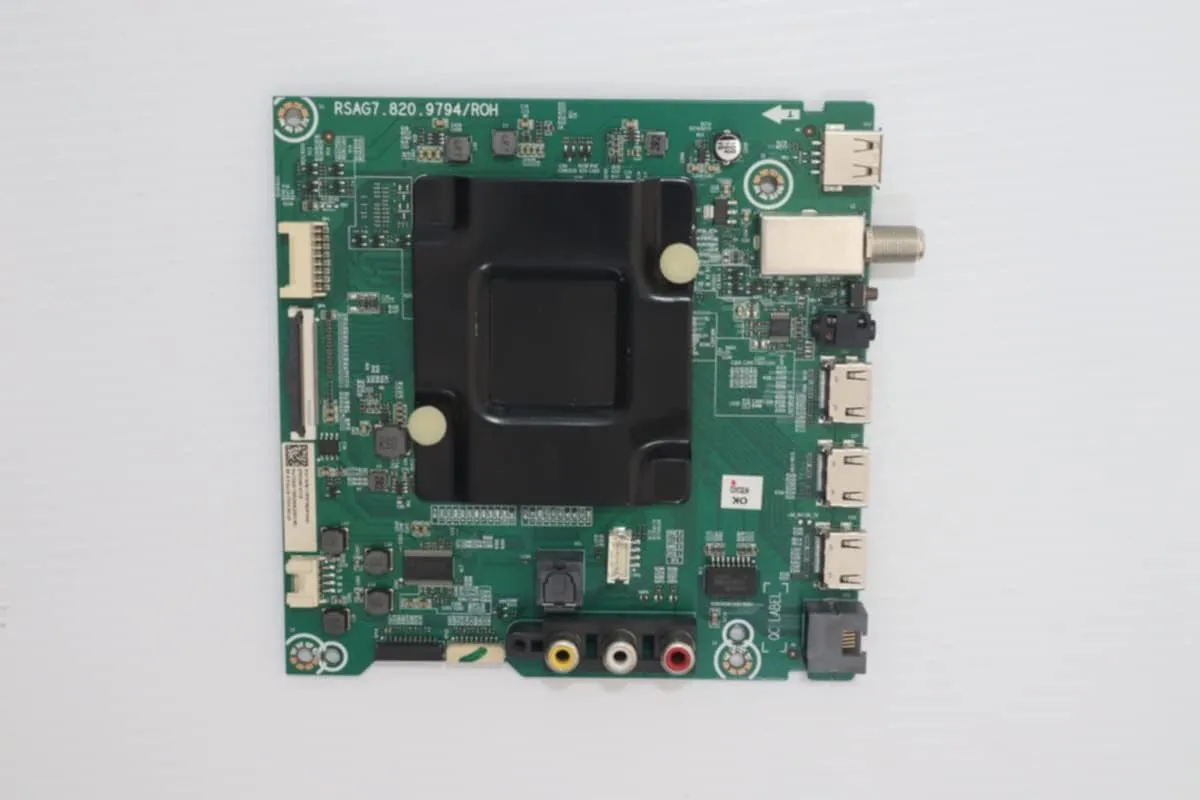

Please see below the list of kit boards associated with each panel: Open Cell/Panel (not included): HV750QUB-F90Main Board: RSAG7.820.9794/ROH , 274776 , 264186T-Con Board: RSAG7.820.9959/ROH , 267064Power Supply: RSAG7.820.9863/ROH , HLL-9863WDWiFi Module: WCOHR2601 , 12290A-WCOHR2601 , 317GAAWF656TCLIR Sensor: RSAG7.820.7181/ROH , 210113
Open Cell/Panel (not included): HV750QUB-F91Main Board: RSAG7.820.11722/ROH , 75A53FURT-Con Board: RSAG7.820.12014/ROHPower Supply: RSAG7.820.10689/ROH , 10689-DWiFi Module: ZDRK8812CU , 2AJVQ-RK8812CUIR Sensor: RSAG7.820.8441/ROH , RSAG7.820.8441/R0H
Open Cell/Panel (not included): HV750QUB-F9AMain Board: RSAG7.820.11135/ROH , 264185T-Con Board: RSAG7.820.9959/ROH , 267064Power Supply: RSAG7.820.10689/ROH , 267224WiFi Module: 1250667IR Sensor: RSAG7.820.8441/ROH
Open Cell/Panel (not included): HV750QUB-F90 1Main Board: RSAG7.820.11135/ROH , E303981T-Con Board: RSAG7.820.9959/ROHPower Supply: RSAG.820.10689/ROH , E166702WiFi Module: ZDRK8812CU , 1250667IR Sensor: RSAG7.820.8441/ROH
