Pulley-carabiner that facilitates installation of the rope when pulley is connected to the anchor

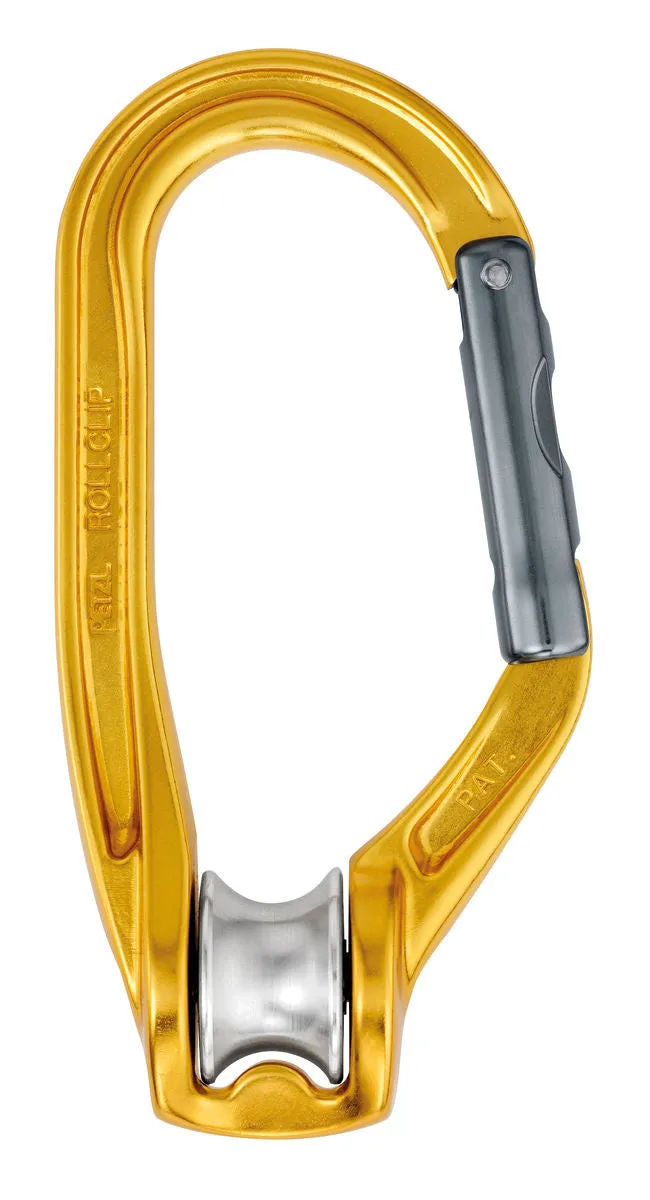

ROLLCLIP A is a pulley-carabiner with a gate opening on the pulley side that facilitates installation of the rope when the pulley is fixed to the anchor. It is available with an automatic TRIACT-LOCK locking system, or without a locking system. ROLLCLIP A may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
Product usually ships in 7 to 14 business days.
- Easier handling:
- sheave mounted on sealed ball bearings for excellent efficiency

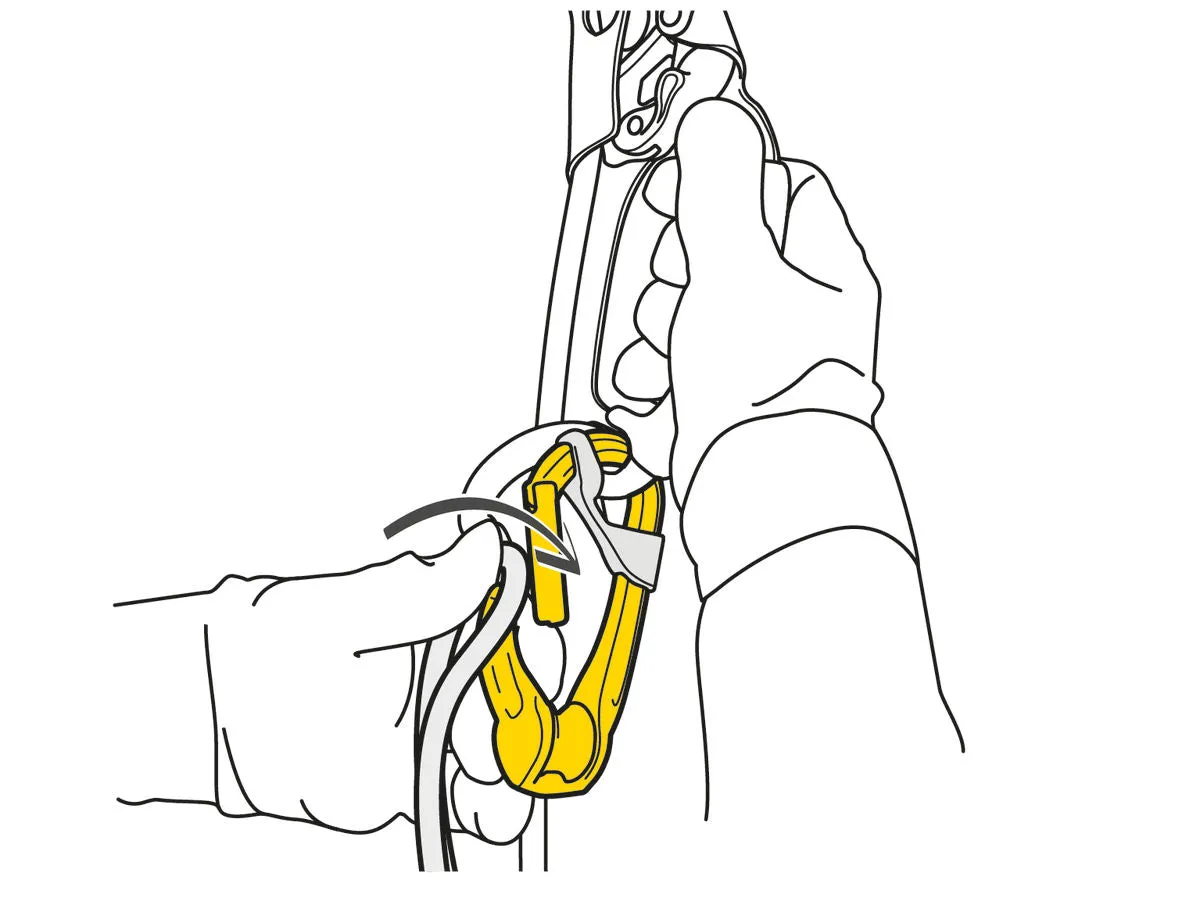

- gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor

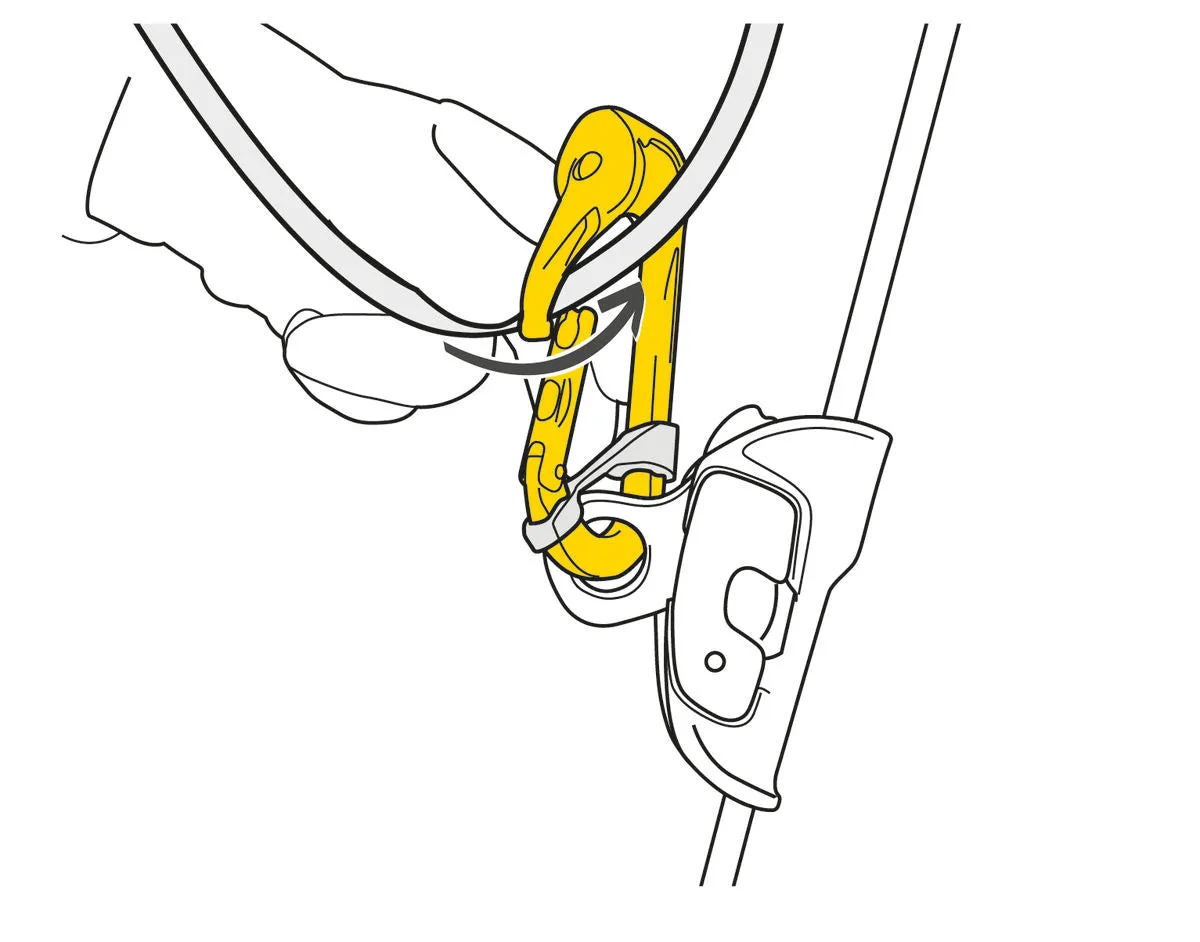

- may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flipping
- Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place - H cross-section of carabiner:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion - Available in versions with or without TRIACT-LOCK locking system
Product Specifications
- Material(s): aluminum
- Min. rope diameter: 7 mm
- Max. rope diameter: 13 mm
- Sheave diameter: 18 mm
- Maximum working load: 2 x 2 = 4 kN
- Efficiency: 85 %
- Major axis strength: 20 kN
- Minor axis strength: 8 kN
- Open gate strength: 7 kN
Technical Information
Technical notice Download the PDFDeclaration Of Conformity Download the PDFPPE inspection procedure Download the PDFPPE checklist Download the PDFTips for maintaining your equipment Download the PDF
