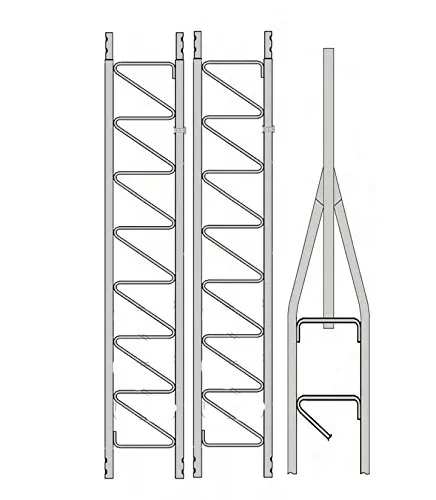

- INCLUDES: (2) ROHN 25G STANDARD 10' SECTIONS, (1) ROHN 25AG2 STANDARD 9' 9" TOP SECTION *30' is a nominal description - actual assembled height will be less if the bottom section is partially embedded in concrete*
- The ROHN 25G uses double bolted joints, proven to be the best method of joining tower sections for sturdiness and dependability. *See Rohn 25G Guides for Specifications and Installation Requirements. Professional Installation Required*
- 1-1/4" OD, 16 Gauge legs 5/16" OD Solid Bracing Completely hot-dipped galvanized after fabrication. Built on an 11 1/4" equilateral triangle design
- Each section contains all required nuts and bolts shipped with each section. 25AG2 Features a tapered top and integrated mounting pipe. The mounting pipe, measured from the apex of the side rails, is 14 Gauge x 2.24" OD x 2.08" ID Overall length is 9'9" - see images for measurement breakdown. See description below for more information.
- This tower kit ships via freight only. See below for more information. *Be sure your contact number is current on your order*
These kits use the bottom 10' section to embed in a concrete pad - you can embed either 5' or 3' depending on your installation need. See note below for specification limitations. You can also purchase a variety of base sections, base plates, brackets, etc to accommodate this kit - see our store. *See Rohn 25G & 25G Self-Supporting Guides for Wind Load Specifications and Installation Requirements. These specifications only apply if you embed 5' of the bottom 10' section in concrete per the requirements* * Professional Installation Required. If your installation exceeds ice/wind/load ratings you must guy or bracket your tower* *If your installation exceeds the load/wind/ice ratings put forth by Rohn (see attached documents) you must bracket and/or guy your installation. These items are not provided and can be purchased separately. Grounding kits are also available for purchase separately (see Rohn BGK3G) **These tower sections must ship via FREIGHT. Your delivery location must be able to accept a full size semi. If a forklift is not available at the delivery location (such as a residence or business without a dock), you will be required to unband the pallet and remove the tower sections from the truck by hand (average weight is 45 lbs per section). When the freight company contacts you to schedule a delivery appointment they will ask you if you require a liftgate at delivery - this would allow the driver to remove the pallet as a whole from the truck. This service is not standard and not included in your cost - if you wish to have a liftgate you will be responsible for those charges at delivery.
- Is Discontinued By Manufacturer : No
- Item Weight : 230 Pounds
- Date First Available : March 29, 2017
- Manufacturer : Rohn
