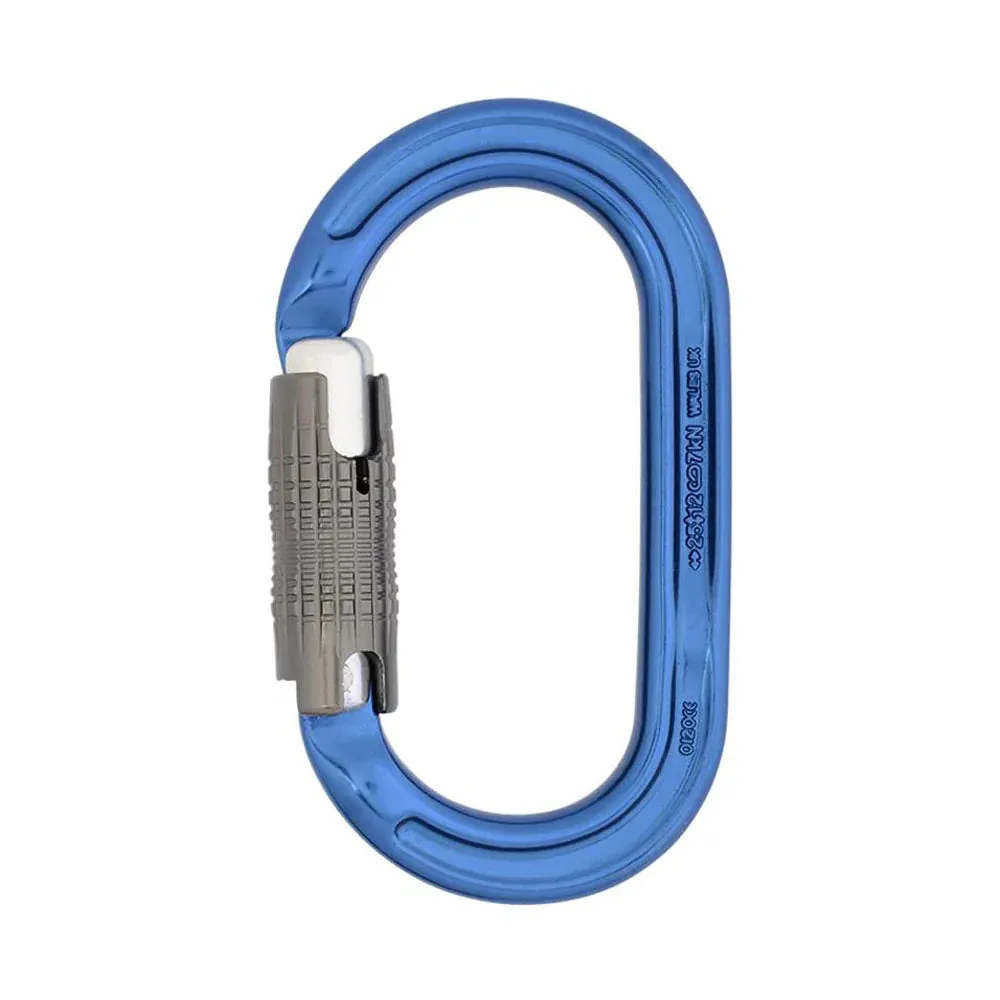

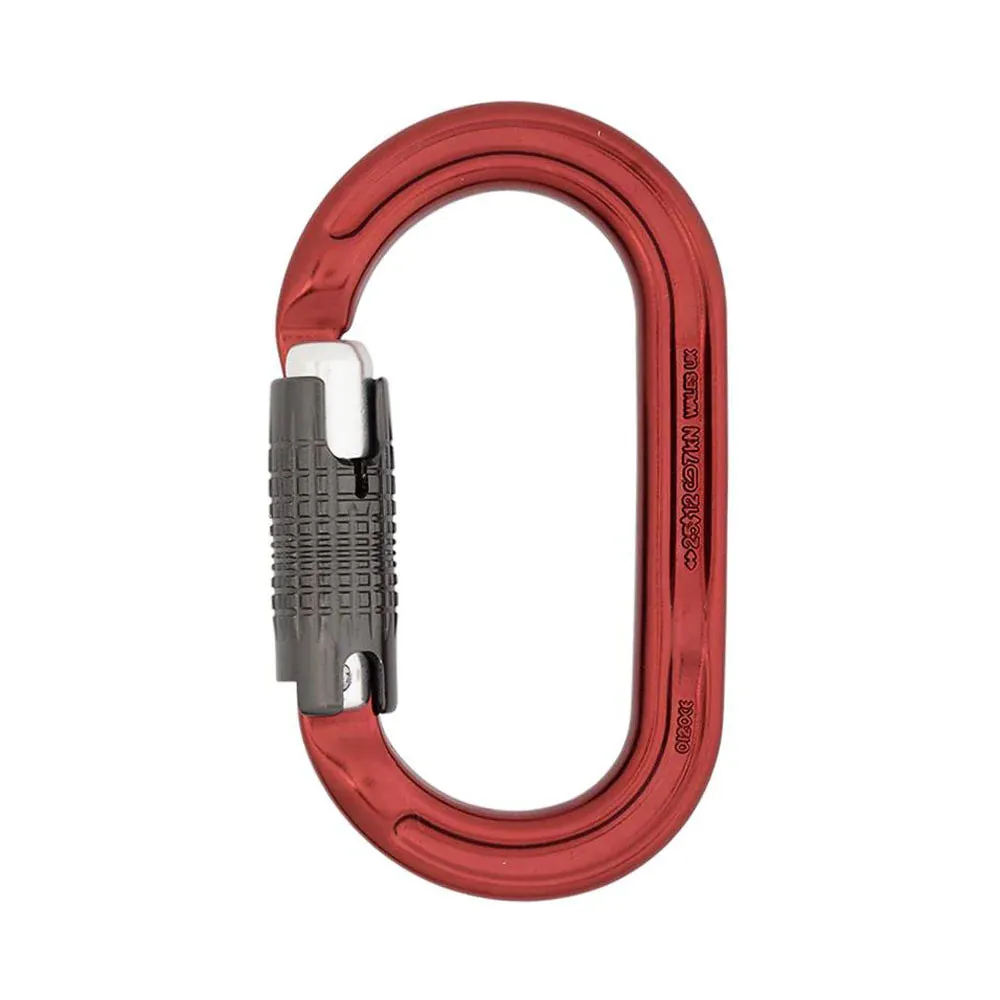

The ultra-light, clean nose Ultra O carabiners are the mainstay of DMM's carabiner range, and for good reason. Not only do they give high strength to weight ratios and feel great in the hand, they also help to keep components of a system aligned. The deep symmetrical basket allows pulleys, webbing, ropes and even other carabiners to 'centre' naturally and still allow easy stacking of components on either side. A connecting classic.
Available as a screwgate, locksafe(triple action) and in a 3 colour pack (locksafe)
- Oval for symmetry; shape allows central positioning of devices
- Keylock clean nose for snag free connection
Screwgate - Non auto-locking gate which requires two actions to open, and is easy to use with one hand. Screwgates are suitable in systems where anchor points can be easily monitored and are unlikely to be affected by running ropes.
Locksafe - An auto-locking gate requiring three separate actions to open. Locksafe gates give extra security in complex rigging systems such as those featuring running ropes or remote anchor points.
Specifications
Product Code - Screwgate A322, Locksafe A327
Colour - Screwgate - Titanium/Lime, Locksafe - Titanium/Green
Individual Serial Number – yes Laser Etched. RFID Available
Gate Options - Screwgate, Locksafe (Triple action) (others available on request)
MBS Major Axis - 25kN
MBS Minor Axis - 12kN
MBS Gate Open - 7kN
Dimensions - 63 x 109mm
Weight - 67g
Gate Opening - 22mm
Conformance - EN 362:2004 B/ T, EN 12275:2013 B
Documention
Locking Connectors User Instructions (EN, FR, DE, IT, ES, PT, NL)
A322 XXX EU Declaration of Conformity
A327 XXX EU Declaration of Conformity
